Case Study

Hono'uli'uli WWTP, Honolulu, HI

Hono'uli'uli WWTP entrance sign

Project in Brief

  • Project Name: Hono'uli'uli Wastewater Treatment Plant
  • Location: Honolulu, HI
  • Installation Date: May 2019
  • Source of Odors: Cake Odor Control Facility
  • System Type: Biofilters
  • Media Type: Enhanced Cell-Max™
  • H2S Removal Efficiency: >99%

The Situation

Three biofilters required outfitting with a complete odor control system, including all media, equipment and accessories.

The Solution

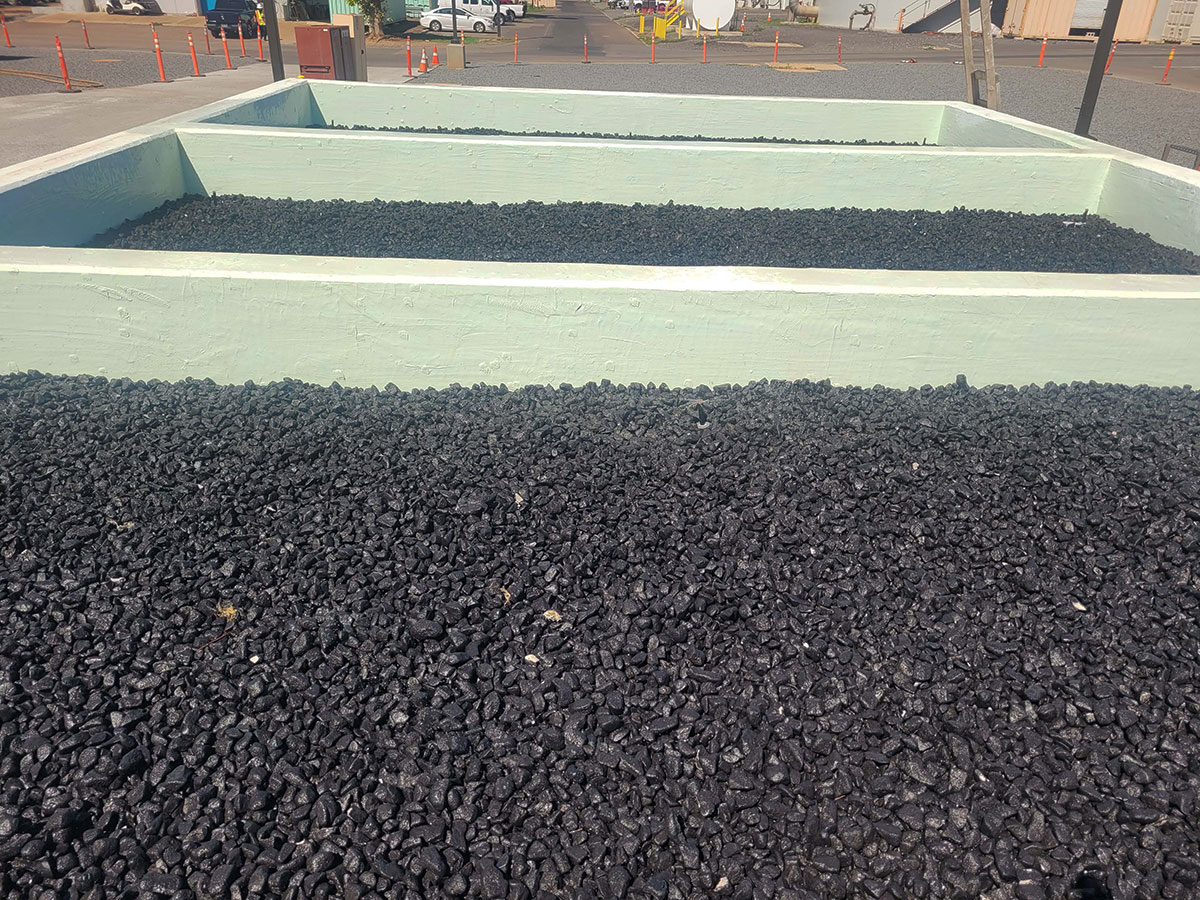

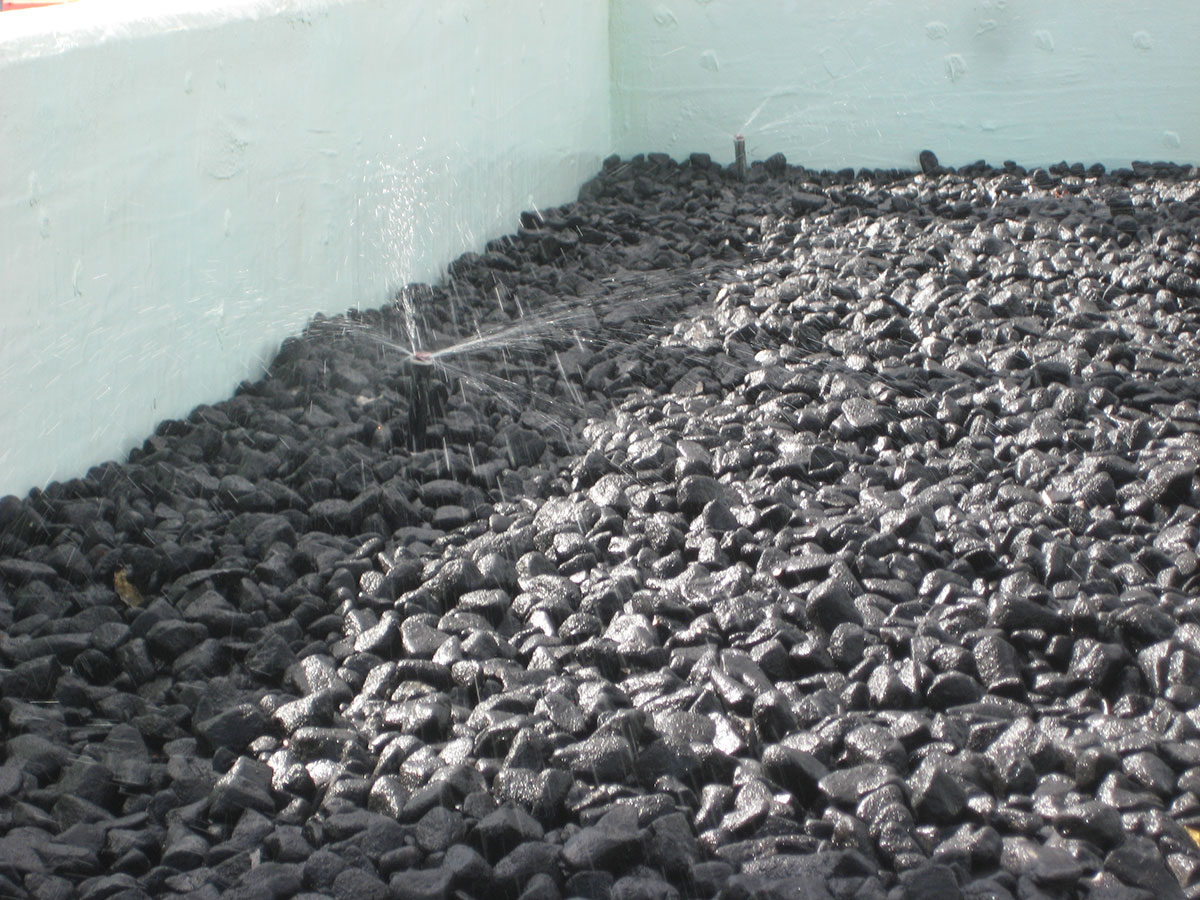

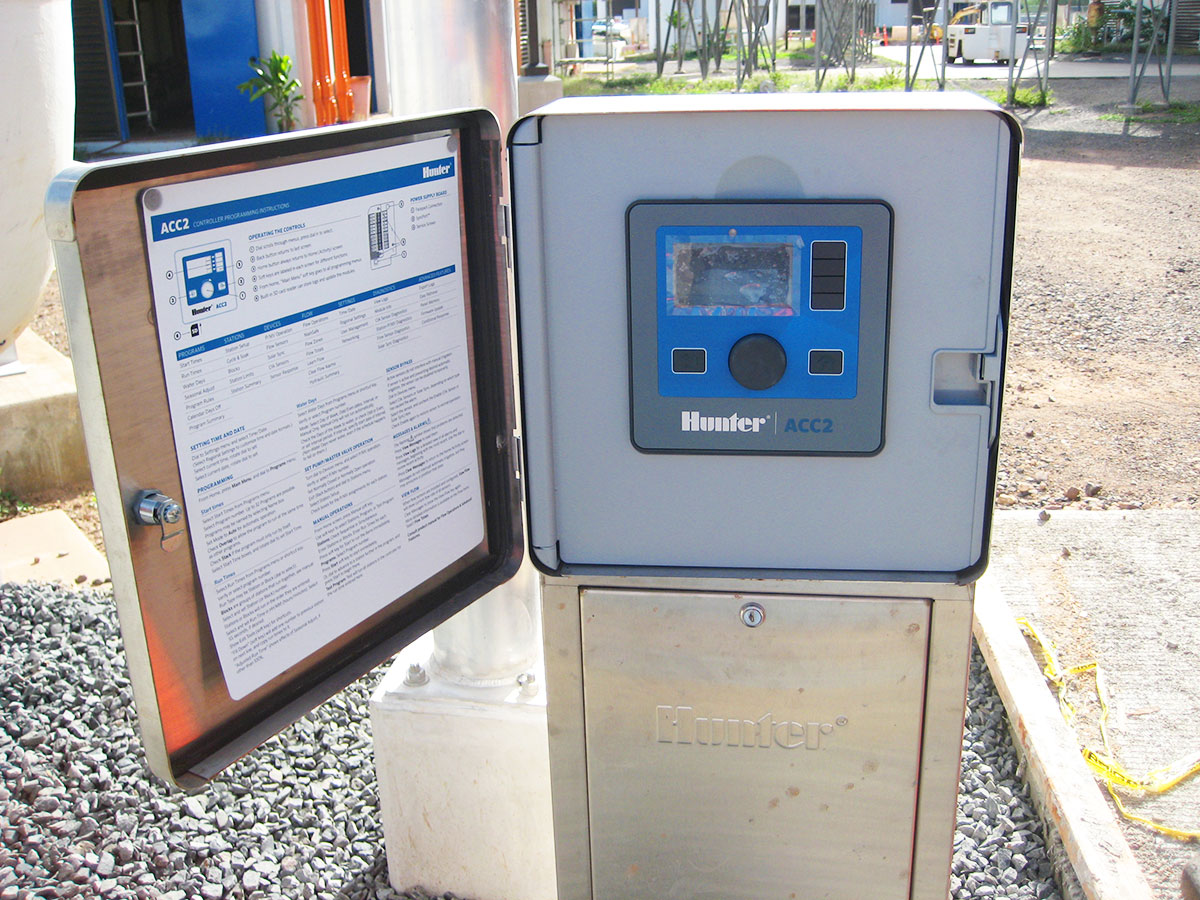

Parsons RCI, Inc., a local firm working with GES Biotek, upgraded the Biofilters with New York Blower exhaust fans and a Hunter irrigation system controller and spray nozzles. Parsons then filled the Biofilters with Enhanced Cell-Max™ media, an open-cell, rigid substrate coated with a proprietary formula of nutrients and adsorbents. This helps establish a healthy, thriving ecosystem of fungi and bacterial organisms to treat complex odors, VOCs, and low levels of H2S at 1/4 the weight of comparable engineered media.

A smoke test and full performance test verified that the newly outfitted system was performing to spec. The smoke tests demonstrated uniform airflow distribution throughout the Enhanced Cell-Max™ media bed on all three of the biofilter cells, which indicates that the air distribution pattern is even throughout the system.

Additional Case Studies

Enhanced Cell-Max installed at Eastern Municipal Water District, San Jacinto, CA

Eastern Municipal Water District, San Jacinto, CA

Enhanced Cell-Max™, Crater-Max®

GES Biotek installed a dual-media ecosystem to properly distribute the foul air and remove all complex odors and VOCs.

Enhanced Cell-Max installed at Woodlands Pump Station, Cary, NC

Woodlands Pump Station, Cary, NC

Enhanced Cell-Max™

GES Biotek manufactures engineered nutrient-rich open-cell substrate from recycled glass material that would otherwise end up in a landfill.

Crater-Max installed at Headworks Bar Screen Project, Hayward, CA

Headworks Bar Screens Project, Hayward, CA


Biofilter beds were refitted with porous Crater-Max® media, which served as the ecosystem for the microorganism growth.

Smoke seeping through Fiber-Max media during smoke test at Richmond, CA biofilter

Air Distribution System Smoke Test, Richmond, CA

Fiber-Max™, Crater-Max®

Smoke testing at a newly constructed WWTP determined whether the air distribution system achieved an even airflow pattern.
