Enhanced Cell-Max

Enhanced Cell-Max™

Enhanced Cell-Max™ provides all of the benefits of high-performance engineered biofilter media (smaller footprint, shorter residence time, longer media life), but at ¼ of the weight of comparable engineered media. This allows for significantly lower project costs.

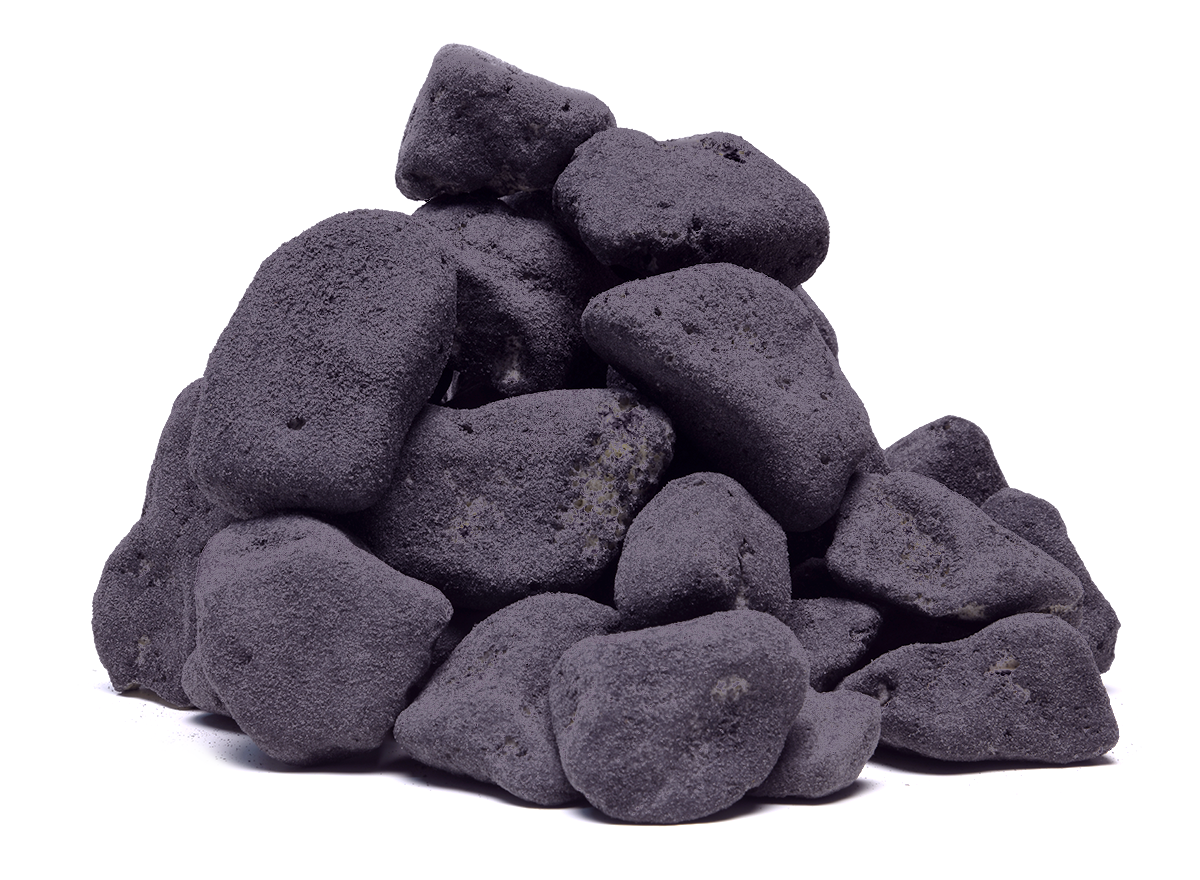

Enhanced Cell-Max Close Up

Details and Specifications

Enhanced Cell-Max™ utilizes the open-cell, rigid substrate of Cell-Max™ media and is coated with a proprietary formula of nutrients and adsorbents. This helps establish a healthy, thriving ecosystem of fungi and bacterial organisms to treat complex odors, VOCs, and low levels of H2S typically found in municipal wastewater applications.

Bulk Density (Dry): 15.6 lbs/ft3

Typical EBRT: Project specific

Face Velocity: 5–15 fpm

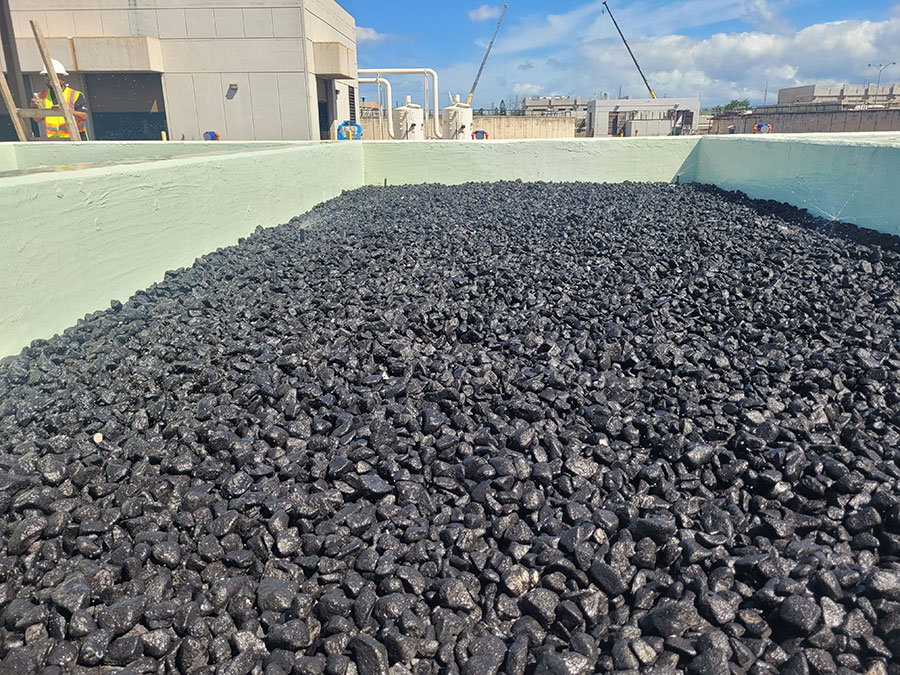

Enhanced Cell-Max Installation

Media Selection and Design Support

To utilize biological organisms and mitigate wastewater odors, it is necessary to understand two basic biochemical processes—autotrophic and heterotrophic, and their opposing requirements and ecosystems.

Autotrophic bacteria consume inorganic compounds as an energy source and receives carbon from carbon dioxide. Heterotrophic biological organisms must obtain both energy and carbon from the organic food they consume. GES Biotek is pleased to offer site-specific media selection and design support to create the ideal green environment for your application.


Enhanced Cell-Max™ Case Studies

Check out what Enhanced Cell-Max™ media has done for these installations.

Enhanced Cell-Max installed at Woodlands Pump Station, Cary, NC

Woodlands Pump Station, Cary, NC

Enhanced Cell-Max™

Smoke tests prove that the Woodlands odor control biofilter demonstrated greater than 99.9% hydrogen sulfide removal efficiency.

Enhanced Cell-Max installed at Eastern Municipal Water District, San Jacinto, CA

Eastern Municipal Water District, San Jacinto, CA

Enhanced Cell-Max™, Crater-Max®

GES Biotek installed a dual-media ecosystem to properly distribute the foul air and remove all complex odors and VOCs.

Hono'uli'uli Biofilters filled with Enhanced Cell-Max media

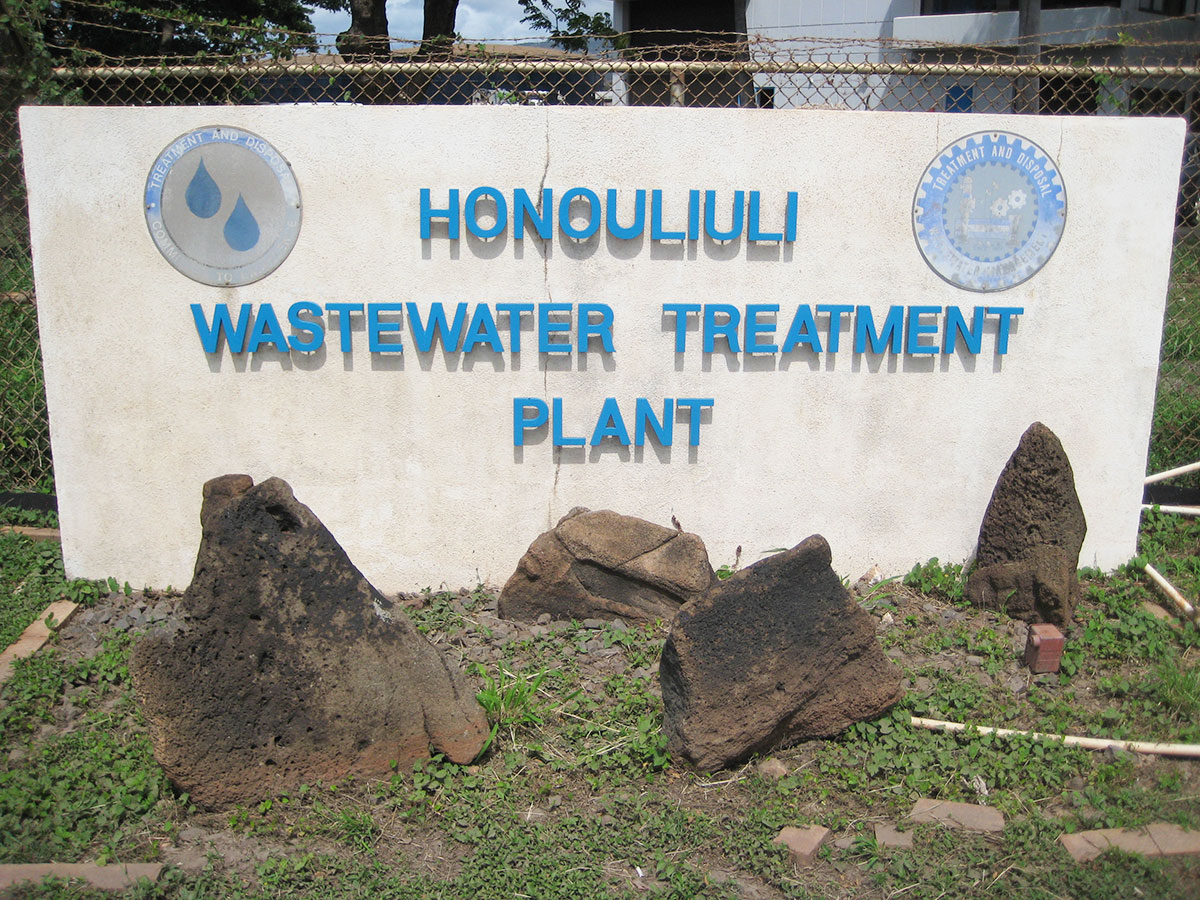

Hono'uli'uli WWTP, Honolulu, HI

Enhanced Cell-Max™

Three biofilters required outfitting with a complete odor control system, including all media, equipment and accessories.


Additional Products

Cell-Max

Cell-Max™

Rigid, acid-resistant media designed for the treatment of high levels of H2S in Bio-Scrubbers®.

Crater-Max

Crater-Max®

Specifically engineered and processed for chemical resistance, size, and optimum surface area for H2S removal.

Fiber-Max

Fiber-Max™

A proprietary blend of organic materials for the removal of complex odors and VOCs.

GES Nutrients

GES 1587 Super Nutrients

Enhance the growth of acidithiobacillus thiooxidans and ferroxidans microorganisms in a biological scrubber ecosystem.
